OGXHUB

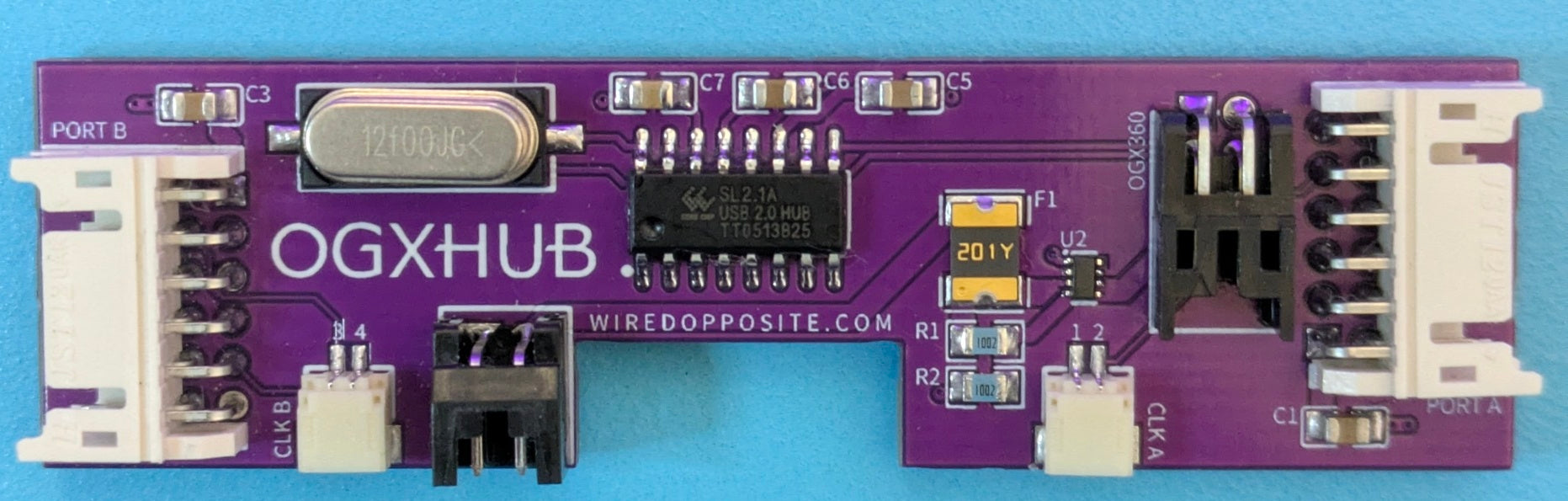

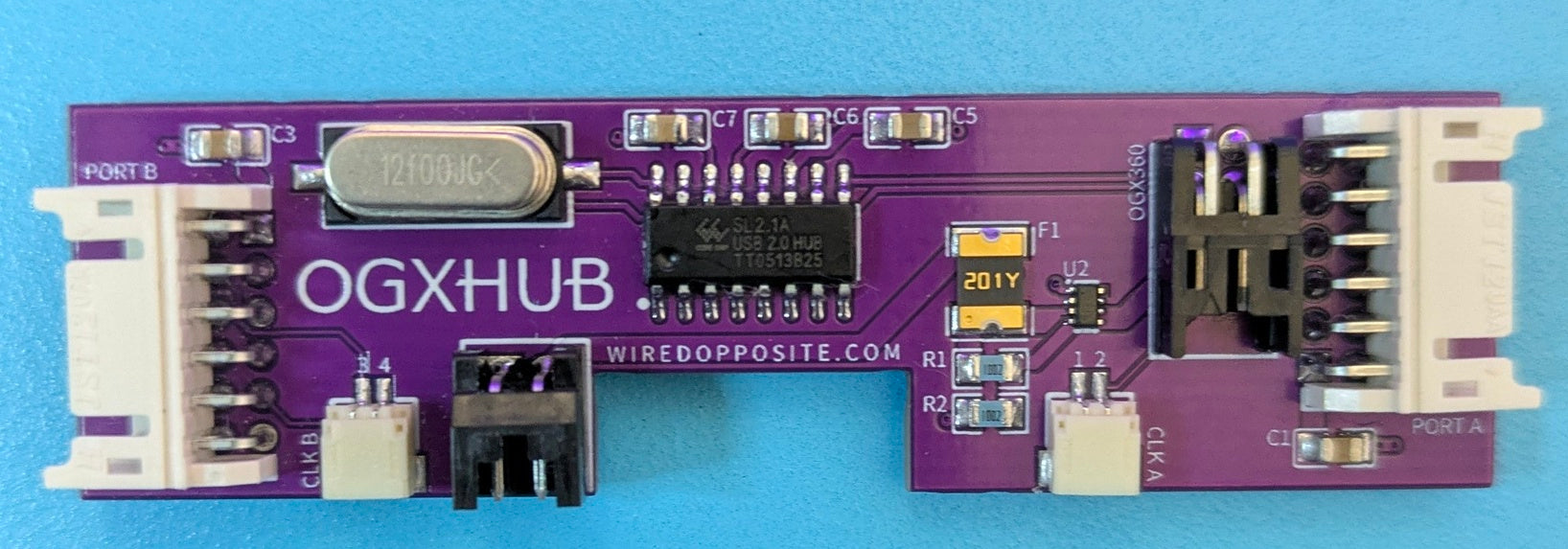

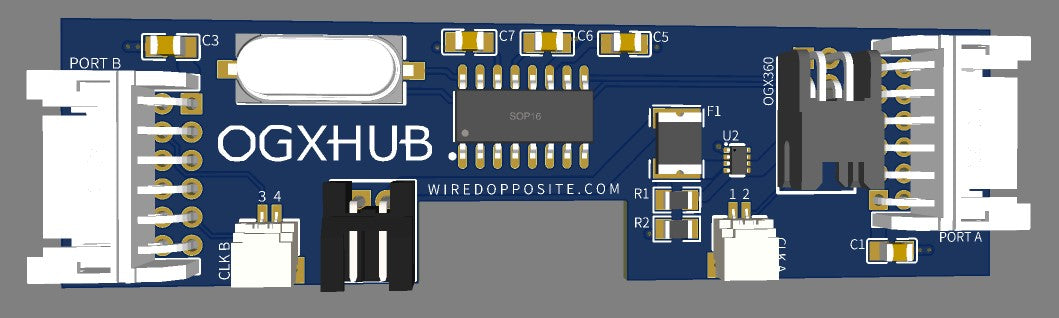

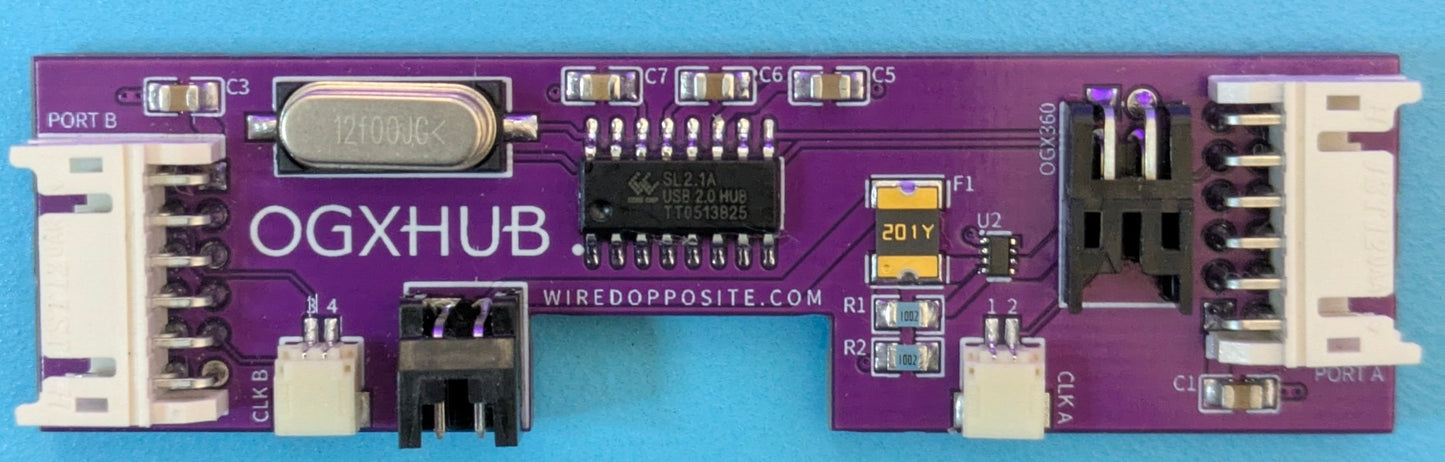

This is a custom 4 port USB hub meant to be installed inside the Original Xbox along with an OGX360 running the latest firmware (supports Original Xbox controllers.)

The Xbox motherboard plugs into an internally installed OGX360 via 2 Xbox motherbaord to USB Micro B x2 cables, the OGX360 plugs into the hub via a USB Type A to 4 pin connenctor, then the controller ports are plugged into the hub. This allows your controller ports to support any device the OGX360 supports with the use of an Xbox controller port to USB adapter (X2USB).

This listing is for the Hub only, the required cables would need to be made or purchased separately.

For additional information about this project please visit the creators GitHub page.

https://github.com/wiredopposite/OGXHUB
